| Wooden Beam & M.S. Pipe Warping Beam :- |
| |
|
| Wooden Beam & M.S. Pipe Warping Beam |
| |
|
 |
 |

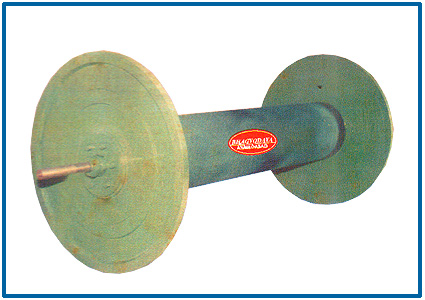

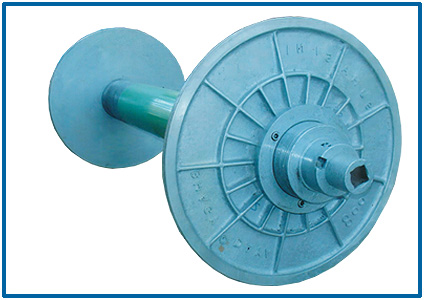

Wooden Beam & M.S. Pipe Warping Beam |
Repair Picanol Looms Beam |
| Warping Beam Details :- |
|
Working widhths (inch / mm) : |
54.5" / 1400, |
60.5" / 1500, |
63.5" / 1600, |
68.5" 1750, |
72.5" / 1850, |
78.5" / 2000 |
Flange diameter (inch / mm) : |
22" /560, |
24" / 610, |
26" / 660, |
28" / 410, |
30" / 760 |
|
Barrel diameter (inch / mm) : |
8" / 200, |
10" / 250 |
12" / 300 |
(6.5" / 165) M.S. PIPE ONLY |
|
Shaft diameter (inch / mm) : |
1.25" / 32 |
1.50" / 38 |
|
|
|
|
|
| |
|
|
|
