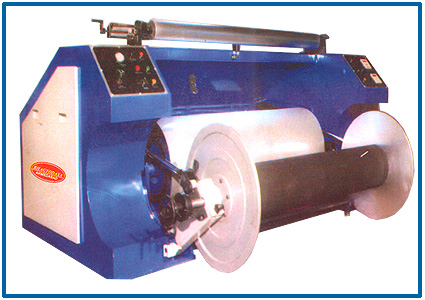

Super Speed Automatic Hydraulic Drum Driven Warping Machine :-
TECH SPECIFICATION :-
Working Width (inch/mm) : 54.5", 60.5", 63.5", 68.5", 72.5", 78.5",
Flange Diameter (inch) : 22",24",26",28",30",
Barrel Diameter (inch) : 8", 10", 12",
Shaft Diameter (inch) : 1.25", 1.50",
Speed Range (yds/min) : 50-700 H.P. 3 to 10
Stop Motion : Electro- Machenical at Head Stock
MAIN FEATURES :-
1.
Heavy Structure Plate for Vibration Free Running.
8.
Dynamically Balanced Fitting Alluminium Guide Roll.
2.
Double Disc Brake on Both Ends of Drum.
9.
Crompton / ABB Make Motor.
3.
Dynamically Balanced Drum at 500 rpm with Certificate.
10.
Dynamically Balanced Machine Pulley.
4.
Power Pack with Rex Rorth Valve.
11.
Japan Make Yashkawa AC Inverter Drive.
5.
Angular Contact Bearing for Beam Pressure.
12.
Name Plate with Newly Designed Buttons and Counter.
6.
Through Beam Sensor Cut Out at Both Ends.
13.
All High Tension Bolts & Nuts with Spring Washer.
7.
Dynamically Balanced Pipe Fitted Beam (optional)
14.
Drum Speed Minimum 50 mpm to 700 mpm Maximum

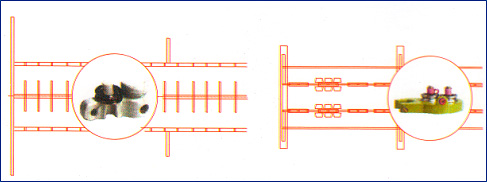

CREEL :-
Capacity : 400 to 750 ends
Pitch (inch / mm) : 8"200 to 15" to 375
Tensioner : P-74 Porcelain Tnesioner with pairs of S.S. Tension Disc or Two Pole Tensioner with Ceramic Guide
Stop Motion : Optional at Creel.
We are making also revolving with bubble control creel & magazine creel.
